SenseFly eBee X

£14,245.00£19,245.00 (+VAT)

Map Without Limits

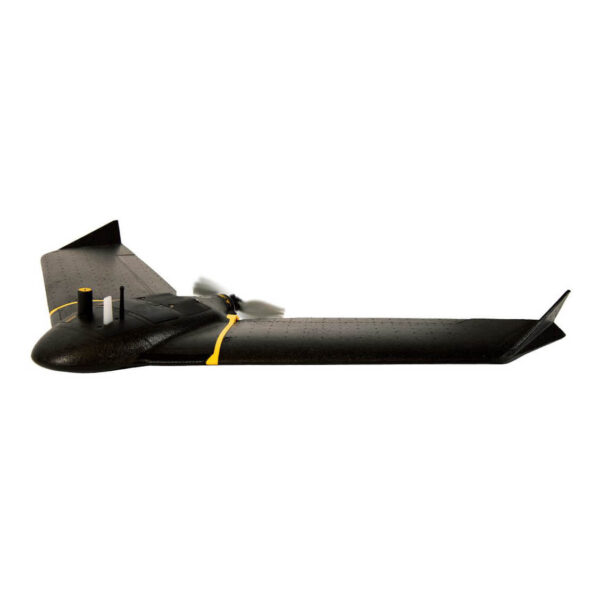

The senseFly eBee X is our flagship fixed-wing mapping and surveying drone (UAV). It is lightweight, hand-launched and helps surveyors and GIS professionals collect important aerial mapping data safely and efficiently via a suite of purpose-built mapping cameras. The raw aerial data collected from the drone can be used to create stunning high-resolution orthomosaics or it can be processed with photogrammetry software, such as Pix4Dmapper, to create topographic maps, including DSMs, DEMs, 3D point clouds and more. The topographic data can be used to gain critical project insights and shared across teams for better decision-making. eBee X is also available with RTK or PPK for greater positional accuracy.


Efficient & Precise

eBee X is a proven fixed-wing mapping drone solution designed to meet the exacting standards of surveyors and GIS professionals around the world. Its unique Endurance Extension unlocks a maximum flight time of 90 min—for vast coverage of up to 500 ha (1,235 ac) at 400 ft*—while its available RTK/PPK High- Precision on Demand helps you achieve absolute accuracy of down to 3 cm (1.2 in), without GCPs.


Rugged & Reliable

eBee X is a rugged mapping drone that captures reliable aerial surveying data (orthomosaics, point clouds, DSM, etc.) across project sites—no matter how demanding—thanks to its space-friendly Steep Landing technology, ultra-robust design, live air traffic data and more. eBee X comes with our industry-leading flight planning software (eMotion) and backed by our trusted professional support network.


Multi-purpose

Whether you’re doing drone photogrammetry or simply creating high-resolution orthomosaics of your project site, eBee X was designed to suit every job thanks to its range of groundbreaking mapping drone cameras. These include the senseFly S.O.D.A. 3D, for stunning 3D reconstructions of vertical environments, the best-in-class senseFly Aeria X RGB photogrammetry camera and the senseFly Duet T for creating geo-accurate thermal maps.

Contact us for your free on-site demo.


Ebee X Payloads

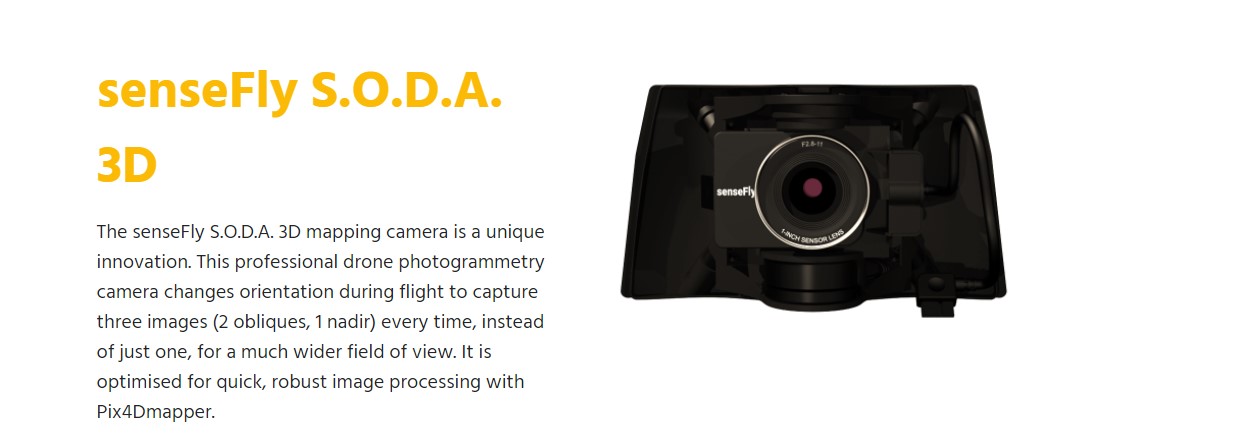

SenseFly S.O.D.A. 3D
Mapping Camera

The senseFly S.O.D.A. 3D mapping camera is a unique innovation – a professional drone photogrammetry camera that changes orientation during flight to capture three images (2 oblique, 1 nadir) every time, instead of just one, for a much wider field of view. It is optimised for quick, robust image processing with Pix4Dmapper.

Example Data set captured using SenseFly Ebee X with S.O.D.A. 3D mapping camera

The gravity dam in Salanfe, Switzerland has a storage capacity of 40 million cubic metres. It is 52m high, 40 m wide at the base, with a 608 m top length. This dataset was collected with an eBee X carrying a senseFly S.O.D.A. 3D camera.

Technical data
Ground resolution: 3.4 cm (1.33 in)/px
Coverage: 0.22 sq. km (0.08 sq. mi)
Flight height:  100 m (328 ft) above the top of the dam
Number of images: 310

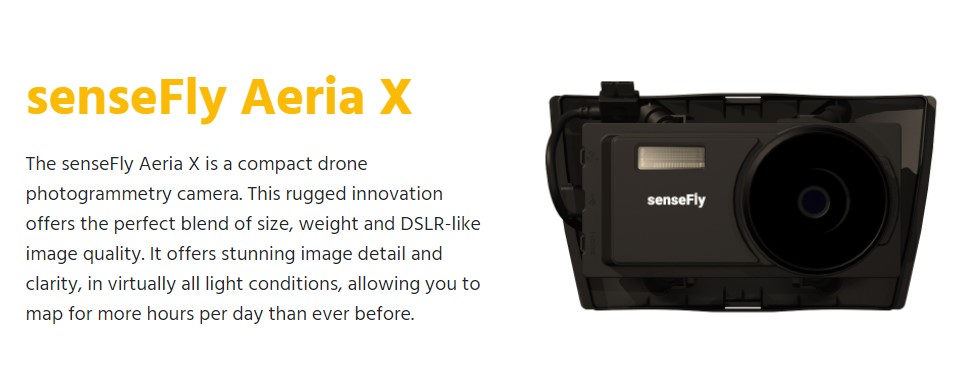

SenseFly Aeria X
Photogrammetry Camera

The senseFly Aeria X is a compact drone photogrammetry camera.

This rugged innovation offers the perfect blend of size, weight and DSLR-like image quality. It offers stunning image detail and clarity, in virtually all light conditions, allowing you to map for more hours per day than ever before.

Example Data set captured using SenseFly Ebee X with Aeria X mapping camera

This gravel quarry in Johnson, Vermont (USA) was surveyed with an eBee X drone carrying a senseFly Aeria X camera. The flight height was planned at 122 m (400ft) AED at an estimated GSD of 2.54cm/pix (1 inch). However, because of the depth of the quarry, the final GSD was 3.59 cm (1.41 in)/pixel.

Technical data
Ground resolution: 3.6 cm (1.18 in)/px
Coverage: 15.6 ha (37 ac)
Flight height: 122 m (400 ft)
Number of images: 136

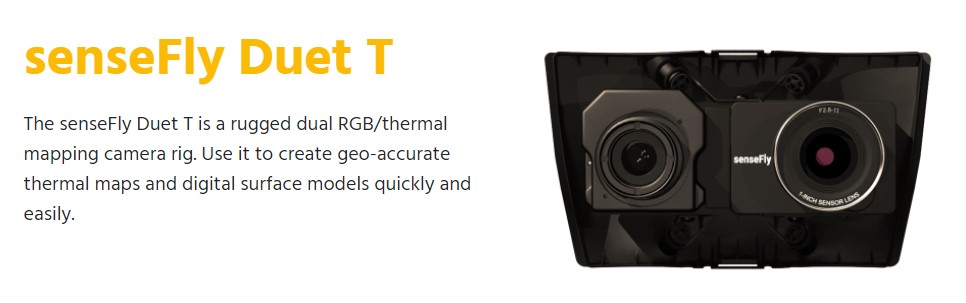

SenseFly Duet T
Thermal Mapping Camera

2 sensors, 1 heat map star

The SenseFly Duet T is a rugged dual RGB/thermal mapping camera rig. Use it to create geo-accurate thermal maps and digital surface models quickly and easily.

Example Data set captured using the SenseFly Ebee X with SenseFly Duet T

This dataset of a light industrial estate in Switzerland was collected by an eBee X fixed-wing drone carrying a senseFly Duet T thermal mapping camera. The images were processed using Pix4D software. The point cloud and DSM outputs are based on the camera’s RGB images. The thermal data meanwhile were projected to generate the thermal 3D mesh and temperature index map.
Technical data
Ground resolution: RGB 2 cm (0.8 in)/px, thermal 11 cm (4.3 in)/px
Coverage: 7.5 ha (17.3 acres)
Flight height: 84 m (275.4 ft)
Number of images: 277 RGB + 277 thermal




MicaSense RedEdge-MX
Multispectral Camera
MicaSense RedEdge-MX Multispectral Camera

The sensor that doesn’t compromise

The RedEdge-MX is a rugged and precise multispectral camera for advanced agricultural analysis. This high-performance tool captures both the spectral bands required for crop health indices (green, red, red edge and near-infrared), a blue band for deeper insights into specific issues, plus composite RGB imagery.

Example Data set captured using SenseFly Ebee X with MicaSense RedEdge-MX Multispectral Camera

This dataset of mixed-use agricultural fields was collected in Assens, Switzerland during winter 2018/2019. The 220 ha (544ac) site was mapped with a single 75-minute senseFly eBee X drone flight (with the platform’s Endurance Extension activated) and the drone was carrying a MicaSense RedEdge-MX multispectral camera.

Technical data
Ground resolution: 8 cm (3.15 in) / px
Coverage: 200 Ha (494 ac)
Flight height: 120 m (394 ft)
Number of images :12740 (2548 x 5 bands)

Parrot Sequoia+
Multispectral Camera

Capture the invisible
Based upon years of global Parrot Group research and experience, the Sequoia+ multispectral camera offers a unique blend of accuracy, production quality and competitive price.

Example Data set captured using the SenseFly Ebee X withParrot Sequoia+ Multispectral Camera

This wheat field in Rostock, Germany was mapped using an eBee SQ agriculture drone, which carries a Parrot Sequoia+ camera. The flight’s multispectral images were processed to create the NDVI and cloud dataset below using Pix4Dfields software. This dataset is courtesy of Pix4D.

Technical data
Ground resolution: 11 cm (4.3 in) / pixel
Coverage: 90.7 ha (224 ac)
Flight height: 120 m (400 ft)
Number of images: 1,788 (447 x 4 bands)

What’s included:
1 x 2.4GHz USB radio modem for data link
1 x Emotion flight planning software
2 x standard Batteries with Smart Charger
3 x Propellers
10 x Rubber Bands
Associated Cables
1 x Hard Carry Case
1 x EPP Glue
Chosen Camera Payload
